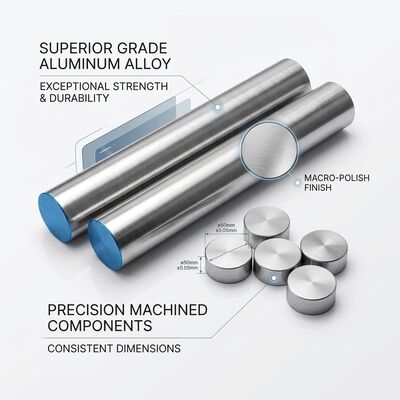

2017-T4 Precision Aluminum Bar Raw Material Purpose Developed For Mold Manufacturing High-Speed CNC Applications

The 2017-T4 precision aluminum bar is an aluminum-copper alloy specifically engineered for mold manufacturing, precision tooling, and high-speed CNC machining applications where superior machinability and dimensional stability are paramount. This alloy, also designated as AlCu4MgSi under European standards, offers the finest chip formation characteristics among heat-treatable aluminum alloys, producing short, well-defined chips that clear effectively during automated machining operations. The T4 solution heat-treated and naturally aged temper delivers machinability ratings approaching free-cutting brass while maintaining mechanical strength suitable for injection mold components, blow mold tooling, die casting inserts, and precision fixture bodies requiring extensive material removal with tight geometric tolerances. Mold makers worldwide select 2017-T4 aluminum bar as an economical alternative to 7075 or tool steel for prototype molds, short-run production tooling, and low-volume manufacturing applications where rapid turnaround and reduced machining cycle times provide significant competitive advantages. The alloy's consistent grain structure and homogeneous chemical composition ensure predictable cutting behavior, stable dimensional response during machining, and excellent surface finish quality on machined surfaces without the need for secondary polishing operations in many applications.

• Outstanding High-Speed Machinability: 2017-T4 aluminum bar achieves machinability ratings of approximately 70% relative to free-cutting brass (CZ121), significantly exceeding the machining performance of 6061 and 6082 alloys. The controlled copper content (3.5-4.5%) creates microstructural characteristics that promote clean chip separation, reduced built-up edge formation on cutting tools, and excellent surface finish at cutting speeds up to 500 m/min. This superior chip-breaking behavior enables unattended CNC production with consistent dimensional accuracy and minimal tool wear across extended production runs.
• Precision Dimensional Stability: Unlike rolled or extruded alloys that may exhibit internal stress relief distortion during machining, 2017-T4 aluminum bar is produced with controlled stress-relief processing that minimizes warpage and dimensional drift during material removal. Complex mold components with thin wall sections, deep pockets, and tight geometric tolerances maintain dimensional integrity throughout the entire machining sequence, reducing scrap rates and eliminating the need for intermediate stress-relief heat treatment cycles.
• Excellent Surface Finish Quality: The fine-grained microstructure and consistent chemical homogeneity of 2017-T4 aluminum bar enable the production of machined surfaces with Ra values below 0.8 µm directly from CNC turning and milling operations. This exceptional as-machined surface finish is particularly valuable for mold cavity surfaces, sealing faces, and cosmetic mold components where surface quality directly influences molded part appearance and slide mechanism function.
• Thermal Conductivity For Mold Cooling: With thermal conductivity of approximately 165 W/m·K, 2017 aluminum bar provides superior heat transfer characteristics compared to tool steel mold materials. Mold inserts and core pins manufactured from this alloy dissipate process heat efficiently, reducing cycle times in injection molding and die casting applications while improving molded part quality through more uniform cooling and reduced thermal distortion.
• Cost-Effective Alternative To Tool Steel: For prototype molds, bridge tooling, and short-run production applications producing up to 50,000 cycles, 2017-T4 aluminum bar delivers significant cost advantages over hardened tool steels. Reduced material cost, faster machining cycle times, lower tooling investment, and elimination of heat treatment post-processing combine to reduce total mold manufacturing cost by 30-60% while achieving delivery lead times 40-70% shorter than equivalent steel tooling for comparable applications.

Mold manufacturing facilities worldwide utilize 2017-T4 aluminum bar across diverse tooling applications that demand precision machining and cost efficiency. Plastic injection mold makers specify this alloy for prototype mold cavities, mold cores, ejector plates, slide bodies, and hot runner manifold mounting plates where fast turnaround and dimensional accuracy are critical requirements. Die casting tooling engineers select 2017-T4 for shot sleeves, plunger tips, and cooling inserts that benefit from the alloy's thermal conductivity and machinability combination. Blow mold tooling for packaging and container production frequently incorporates 2017 aluminum components for neck rings, thread inserts, and pinch-off bars that require precise geometry and excellent surface finish. Beyond traditional mold making, precision engineering workshops use 2017-T4 bar stock for high-speed CNC fixture plates, robotic end-effector components, automated assembly tooling, and inspection gauge bodies where the combination of machinability, strength, and dimensional stability provides consistent production performance.

All 2017-T4 aluminum bar products undergo comprehensive quality verification including optical emission spectrometry for chemical composition confirmation, tensile testing per international standards, hardness measurement, and ultrasonic inspection for internal soundness. Bars are individually wrapped with VCI (Volatile Corrosion Inhibitor) paper and packed in reinforced wooden crates with moisture-barrier lining for international transportation. Each delivery includes full material certification documentation, heat treatment records, dimensional inspection reports, and lot traceability information. Our ISO 9001:2015 certified quality management system governs all production and inspection processes to ensure consistent product quality meeting the stringent requirements of precision mold manufacturing and high-speed CNC machining industries.
